IP66 RATED

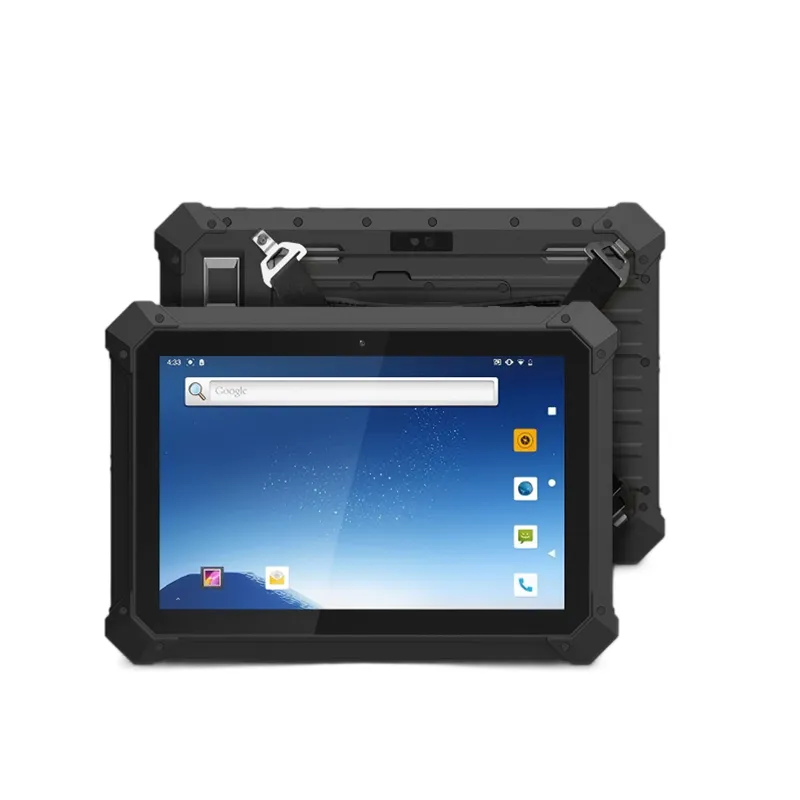

SIGAN SG-1003 10.1 inch full high definition professional industrial Android rugged tablet terminal front view

SIGAN SG-1003 Rugged Industrial Tablet | 10.1" Android 13 Mobile Computer

10.1-Inch FHD High-Bright Screen panel (1920x1200) supporting responsive glove and wet-hand touch actions.
Upgraded Android 13.0 Native Kernel & Next-Gen Enterprise WMS/MES seamless concurrency compatibility.
Massive 10000mAh Detachable Business Power Engine supporting full-shift intensive workflow speeds.
Heavy-Duty IP66 Sealing Armor & 1.5M Concrete Drop Armor to suppress overseas return rates.
Integrated Honeywell Advanced 1D/2D Barcode Scan Engine for damaged or highly reflective codes (Optional).

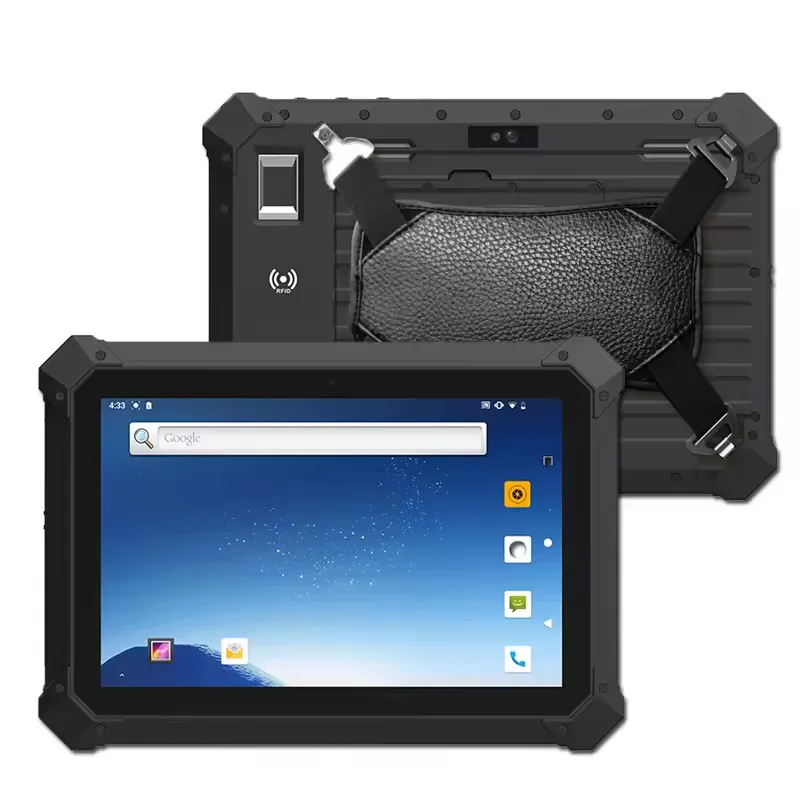

High-Speed UHF RFID Reader & 13.56MHz Multi-protocol NFC Modules for contactless smart tracing (Optional).

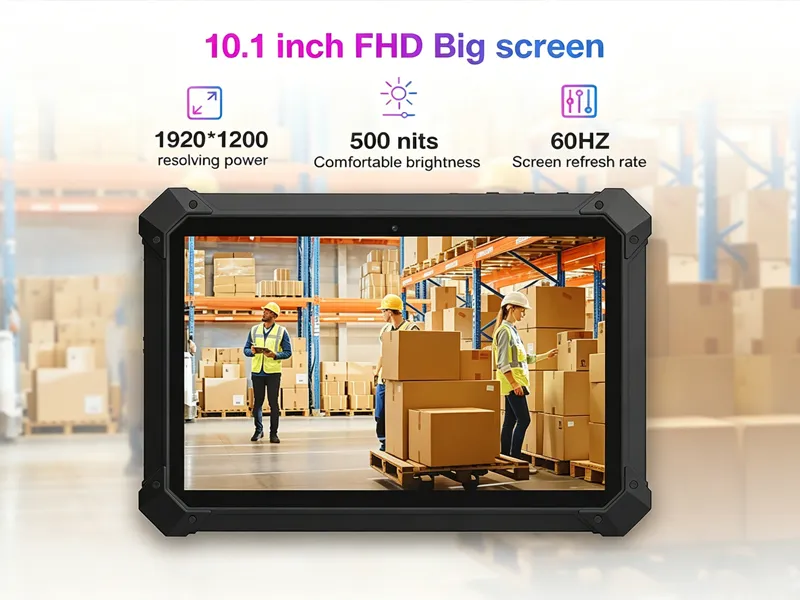

SIGAN SG-1003 10.1 inch large capacitive touch screen displaying delicate colors panel layer in high shelf warehouse

1920x1200 Resolution and 500 nits High Brightness

10.1" FHD Sunlight Viewable Large Screen

Outfitted with a spacious 10.1-inch premium LCD screen boasting a rich 1920x1200 resolution. Emitting 500 nits high brightness under direct sunlight to guarantee perfect outdoor readability, it ensures flawless visual data grids for high-shelf storage picker teams.

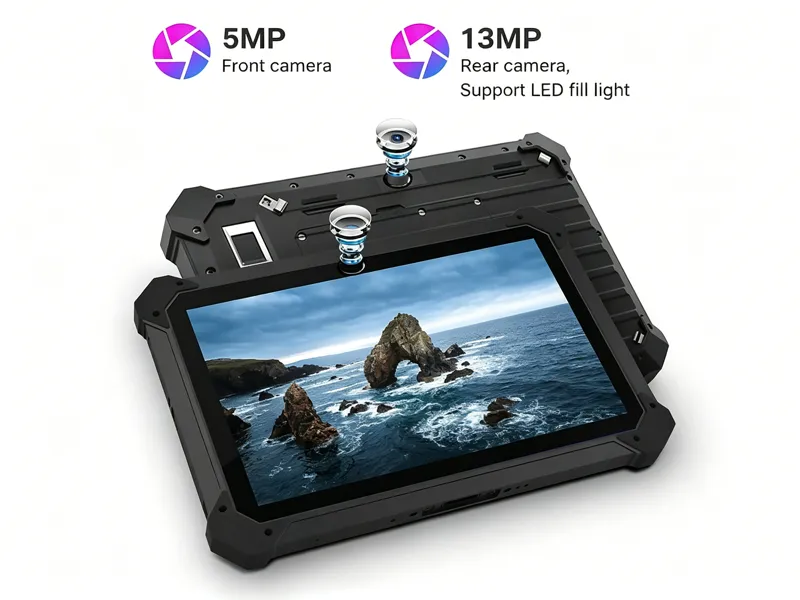

Thirteen megapixel high definition camera array with autofocus led flash on rugged industrial tablet computer

13MP Rear Autofocus with Macro Flashlight Optimization

Dual HD Cameras for Asset Verification

Features an elite 13MP rear autofocus camera network coupled with a 5MP color front camera. Frontline field operators can effortlessly record crystal-clear macro imagery logs of damaged cargo claims, container tracking seals, and instant arrival records.

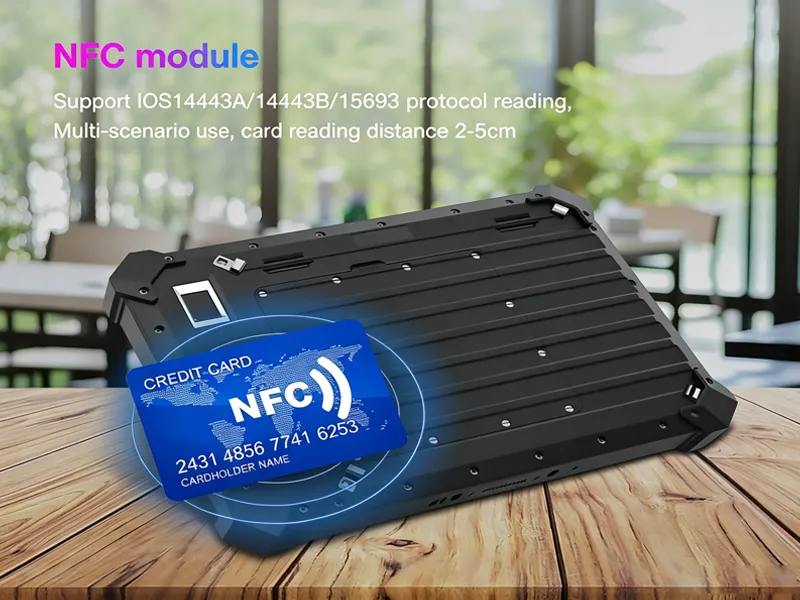

Built in high frequency thirteen point fifty six megahertz NFC module supporting card reading verification workflow

13.56MHz Frequency Core for Secure Staff and Asset Verification

Multi-Protocol Contactless NFC Reader

Integrated with a standard high-frequency 13.56MHz NFC reader/writer module fully compliant with ISO/IEC 14443A/B and ISO15693 protocols. It secures instantaneous contactless authentication loops across staff ID validation, access control, and smart asset tracking.

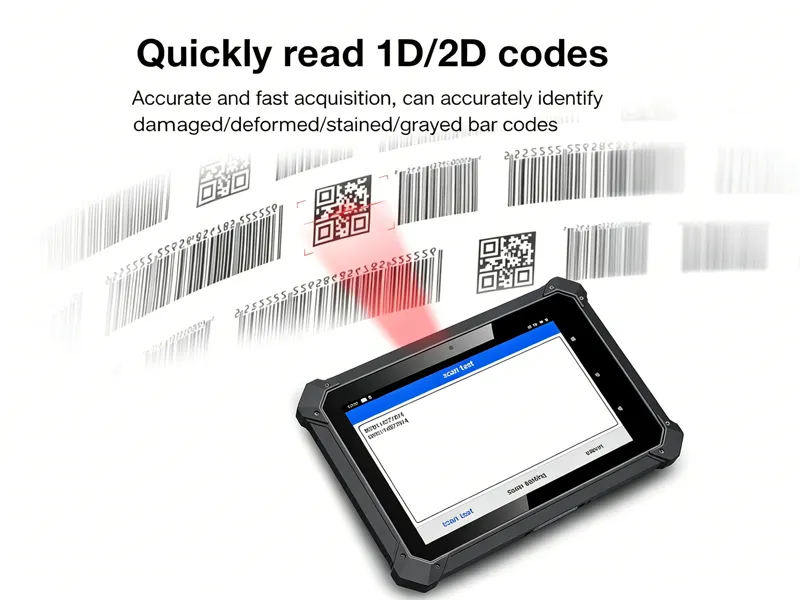

Professional 1D 2D laser barcode scan engine emitting red laser aiming window on industrial terminal

High-Precision Matrix Engine Decoding Defective and Wrinkled Codes

Instant 1D/2D Barcode Data Acquisition

Supports optional professional hardware decoding modules with an optical resolution that instantly captures standard 1D/2D symbologies (QR, PDF417, Aztec, UPC/EAN). It effortlessly handles heavily scratched, stained, blurred, or high-shelf reflective codes without lag.

Technical Advantages

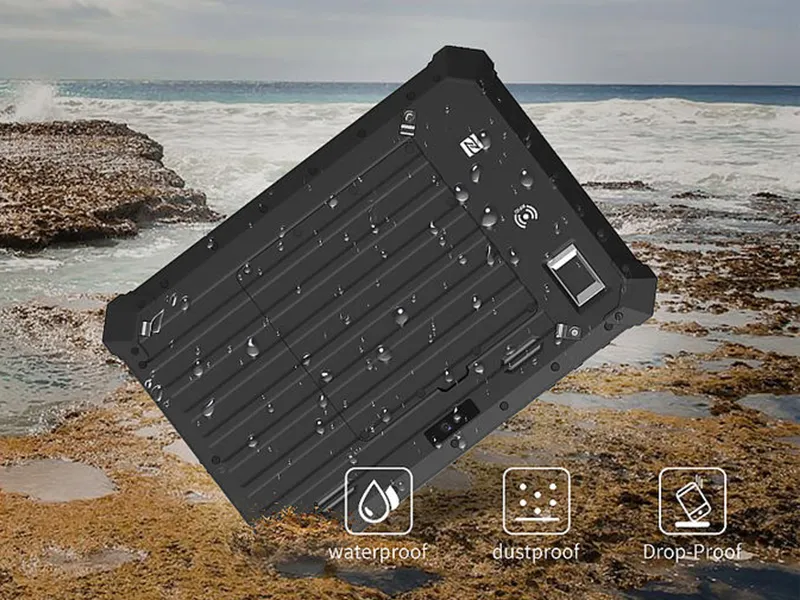

IP66 Certified Sealing & Drop Armor Protection

Engineered with an absolute heavy-duty reinforced housing shield. Fully meeting the strict IP66 protective defense criteria, 6 sides can withstand multiple severe 1.5-meter drops straight onto hard marble floors and continuous 0.5m rolling (1000 times). It completely immunizes internal boards from heavy moisture ingress and dust penetration under extreme conditions (-20°C to 60°C).

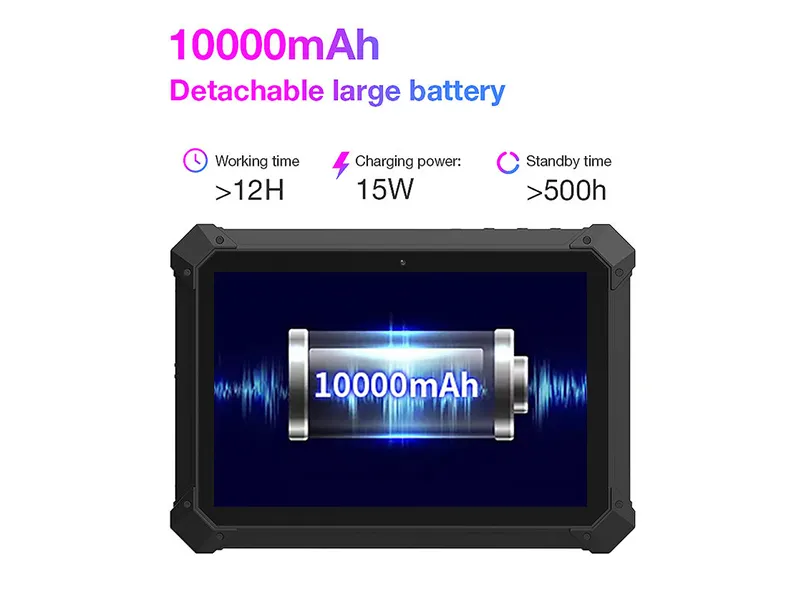

Continuous Shift Readiness via 10000mAh Power

Banish low-battery operational delays completely from your fleet workflow. Driven by a massive 10000mAh / 3.8V polymer lithium-ion battery cell grid enhanced by smart firmware energy throttling, it comfortably pushes past 12 hours of active scanning and over 500 hours of standby time. Features 15W charging power via Type-C to eliminate device downtime across long shifts.

High-Concurrency Enterprise Computing Core Matrix

Armed with an advanced MT8788 64-bit octa-core high-speed processor matrix running up to 2.0GHz, paired with an ARM Mali-G72 MP3 GPU. This computing infrastructure processes extensive supply chain management data flow, heavy warehouse WMS synchronization, and complex multitasking smoothly without network freezing or application lagging.

Specs & Resources

CPU Architecture

MT8788 Octa-core 64bit 2.0GHz (High-concurrency framework)

Operating System

Android 13.0 Enterprise Version Native

Memory Storage

6GB RAM + 128GB ROM (Supports optional config up to 8GB + 256GB)

Display Screen

10.1-inch TFT screen 16:10, FHD 1920x1200, 500nits comfortable brightness

Waterproof Level

IP66 Certified Hermetic Sealing Protective Armor Protection Class

Battery Metrics

Removable 10000mAh / 3.8V Lithium Polymer Cell, Working time > 12 hours

Data Capture

Standard NFC 13.56MHz; Optional 1D/2D Barcode Scan Engine & UHF RFID Module

I/O Ports Slot

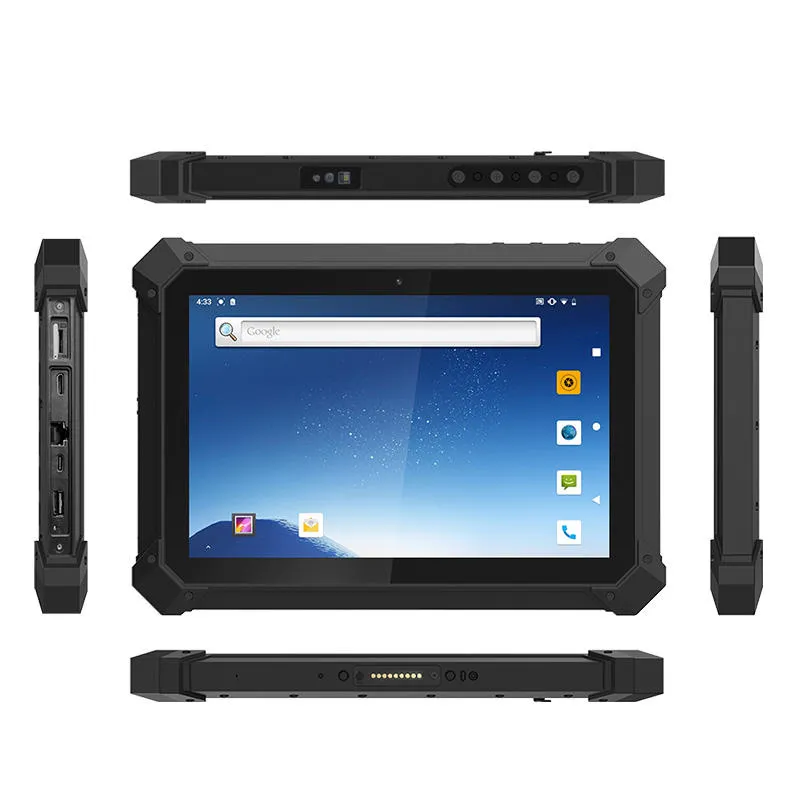

Type-C 2.0 (OTG) *1, USB 2.0 Type-A *1, RJ45 Ethernet Port (100MB/S) *1, HDMI *1, 9-pin Pogo Pin *1

Technical Manuals

Review direct electrical profiles, laser compliance parameters, and mechanical footprints instantly.

Download SG-1003 Datasheet
